Del Sol i/O @ The Rusty Crank
Del Sol i/O

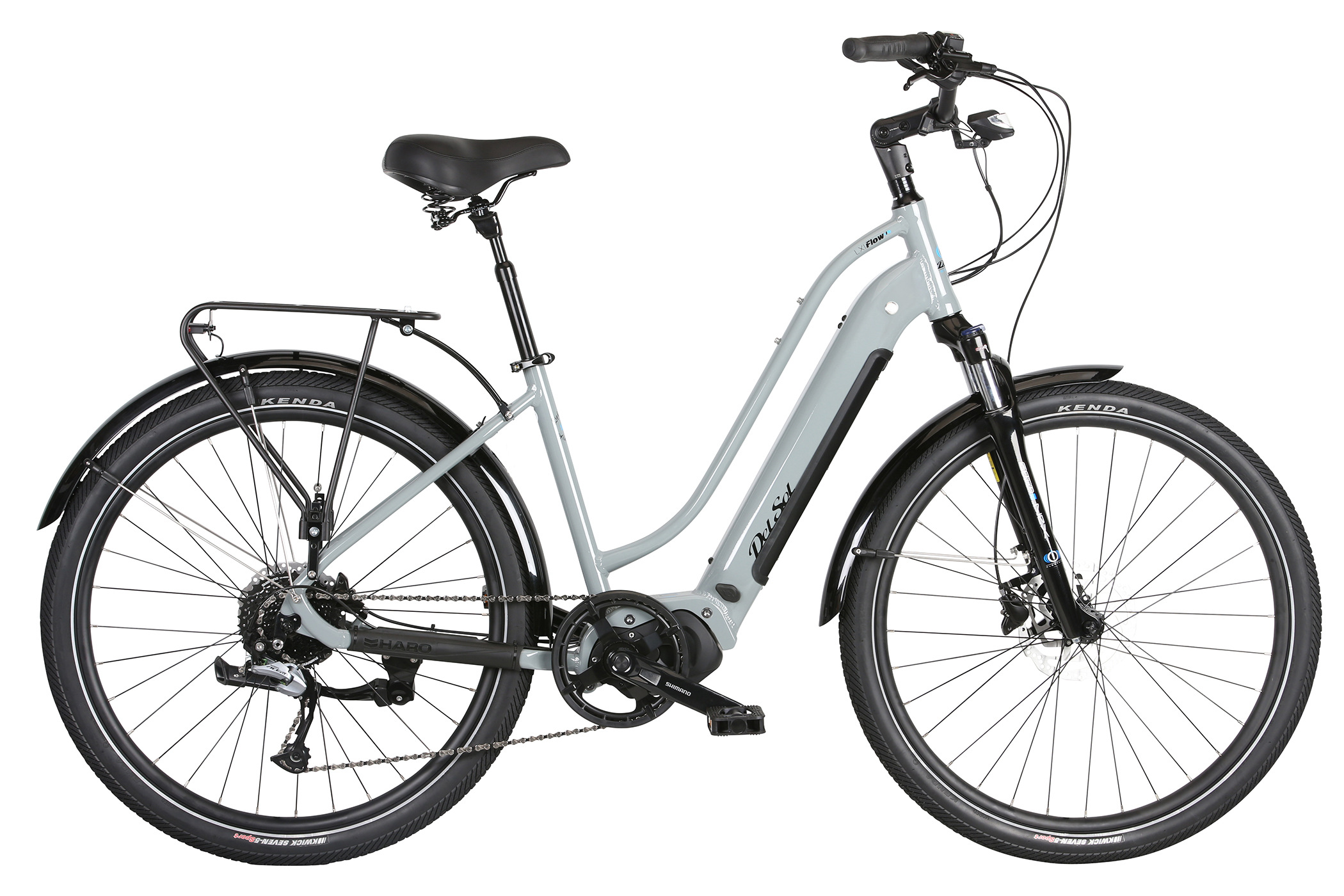

Del Sol i/O electric bikes are designed to take the best parts of riding a bicycle and extend them. Make molehills out of mountains with a powerful and efficient electric motor; turn that commute or trip to the store into one that lets you smell the roses along the way, without worrying about the distance. And because they’re pedal-assisted, they won’t go until you do, keeping the human power aspect that has been part of bikes since that very first velocipede in the 19th century.
$2499.99
Cyan
Cool Gray
Lxi Flow i/O
FEATURES
- Full Shimano quality componentry and E5000 pedal-assist, mid-drive motor are time proven and the leading name brand in e-bikes
- Upright posture ensures visibility and makes for light actuation, easy steering
- Generous standover heights and high-rise handlebars provide irrefutable comfort and ease of mounting/dismounting
- Bright, wide-angle lights with CREE high-definition bulbs provide easy-to-use, even easier-to-see lighting
- Easy-steer handling ensures a light touch
- Class 1 e-bike: pedal assist to 20mph
SPECIFICATIONS
FRAME | LXI Flow i/O | 6061 heat-treaded aluminum | Tig-welded construction | Buttressed down tube frame | Fully internal battery | Angle-correct mid-drive motor mount | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | 135m | ||
---|---|---|---|
FORK | SRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | ||
COLORS | Black, Cyan, Cool Gray | ||
WEIGHT | 51lbs | ||
CRANKS | Shimano FC-E5010 crank arm set for E5000 mid-motor | ||
PEDALS | Comfort | Shock-absorbing Kraton inserts | ||
CHAIN | KMC E9-Sport | 9-speed | ||
FRONT DERAILLEUR | N/A | ||
REAR DERAILLEUR | Shimano Acera M3100 | Shadow Design | Long cage | 9-speed | ||
DERAILLEUR SHIFTER | Shimano Acera Rapidfire Plus | 9-speed | ||
CASSETTE | Shimano HG200-9 | 11-36T | 9-speed | ||
|
| ||
BATTERY | Darfon Internal for Shimano STePS | 504Wh | ||
TIRES | Kenda Kwick Seven.5 | 27.5 x 2.2" | ||
WHEELS/RIMS | Alloy | Width (internal): 25mm | Doulbe-wall construction | 32h | ||
BRAKES | Shimano MT200 Hydraulic Disc | Post mount | 180/160mm Center Lock rotors | ||
BRAKE LEVERS | Shimano MT200 | Alloy | Hydraulic | ||
GRIPS/TAPE | Del Sol Ergo Comfort with Gel | Dual Density | ||
HANDLE BAR | LXI Flow i/O: Alloy | 85mm rise | 54° sweep | 630mm wide; LXI Flow i/O ST: Alloy | 40mm rise | 40° sweep | 615mm wide | ||
STEM | Alloy | ?31.8 bar bore | Adjustable angle | Integrated light holder | ||
HEADSET | FSA No. 10 | 1-1/8" | Threadless | ||
SADDLE | Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle | ||
SEAT POST | Alloy | Suspension | 40mm travel | 27.2 x 350mm | ||
SEAT CLAMP | Alloy | 31.8mm | ||
EXTRAS | Kickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables |
Geometry
SIZE | 14 | 17 | 20 |
Top Tube (Effective) | 595mm (23.4") | 595mm (23.4") | 605mm (23.8") |
Seat Tube (C-T) | 356mm (14") | 435mm (17.1") | 508mm (20") |
Standover Height | 762mm (30") | 800mm (31.5") | 835mm (32.8") |
Head Tube Length | 150mm (5.9") | 165mm (6.5") | 175mm (6.9") |
Head Angle | 68° | 68° | 68° |
Seat Angle | 71° | 71° | 71° |
Wheelbase | 1120mm (44.1") | 1120mm (44.1") | 1131mm (44.5") |
Chainstay | 465mm (18.3") | 465mm (18.3") | 465mm (18.3") |
BB Drop | 45mm (1.8") | 45mm (1.8") | 45mm (1.8") |
Stem Length | 90mm | 90mm | 110mm |
Bar Width | 630mm | 630mm | 630mm |
Crank Length | 170mm | 170mm | 175mm |
Wheel Size | 27.5 | 27.5 | 27.5 |
